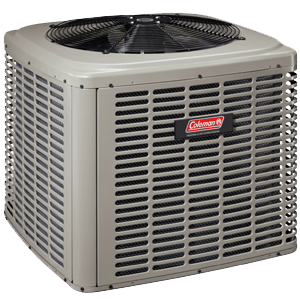

TCJF LX Series Split AC System

The LX Series TCJF models are the outdoor part of a versatile air conditioning system. They are designed to be custom matched with one of our complete line of evaporator sections, each designed to serve a specific function. Matching air handlers are available for upflow, downflow, and horizontal left or right applications to provide a complete system. Alternately, add-on coils are available for use with modular air handlers or upflow, downflow, and horizontal furnaces. Electric heaters and field installed accessories are also available as needed.

  • Small Footprint - Extremely lightweight with a compact footprint, it is a perfect fit for any application.
  • Quality Condenser Coils - The coil is constructed of aluminum microchannel tubing and enhanced aluminum fins for reduced size and increased efficiency.
  • Coil Protection - Coils are protected from damage by a slotted, stamped steel coil guard and secondary polymer mesh.
  • Protected Compressor - Compressors are protected internally by a high pressure relief valve and a temperature sensor, and externally by the system high pressure switch. A factory installed liquid line filter-drier further protects the compressor against moisture and debris.
  • Environmentally Friendly Refrigerant - The next generation refrigerant R-410A delivers environmentally friendly performance with zero ozone depletion.
  • Durable Finish - The cabinet is made of G90-equivalent pre-painted steel, with special primer formulas and matte titanium texture to insure less fading when exposed to sunlight. The coated steel wire fan guard and pre-treated, galvanized steel chassis components resist corrosion and rust creep.
  • Lower Installed Cost - Installation time and costs are reduced by easy power and control wiring connections. The unit is factory charged for a 15-foot lineset. The small base dimension means less space is required on the ground or roof.
  • Quiet Operation - The compressor sound blanket and the swept wing fan blade keep sound to a minimum. The upward air flow carries the normal operating noise away from the living area. The rigid top panel effectively isolates any motor sound. Isolator mounted compressor and the condenser coil muffle the normal fan motor and compressor operating sounds.
  • Easy Service Access - Fully exposed refrigerant connections and a single panel covering the electrical controls make for easy servicing of the unit.
  • Secured Service Valves - Secured, re-usable service valves are provided on both the liquid and vapor sweat connections for ease of evacuating and charging.
MODELCooling Cap.
Charge Oz.
Line SizeDimensions
Weight Lbs.
TCJF18S18.4 16.8 58 3/8 - 3/4 28.25x29.5x29.5 125
TCJF24S26.2 16.5 50 3/8 - 3/4 28.25x29.5x29.5 128
TCJF30S30.5 16.0 55 3/8 - 3/4 36.25x29.5x29.5 130
TCJF36S36.0 17.3 58 3/8 - 3/4 36.25x29.5x29.5 145
TCJF42S43.0 16.8 68 3/8 - 7/8 34.25x34x34 172
TCJF48S47.5 16.0 81 3/8 - 7/8 36.25x34x34 208
TCJF60S57.5 14.5 84 3/8 - 7/8 40.25x34x34 231

Warranty Information

  • All Parts for 120 months - With Prompt Online Registration
  • Compressor for 120 months - With Prompt Online Registration
